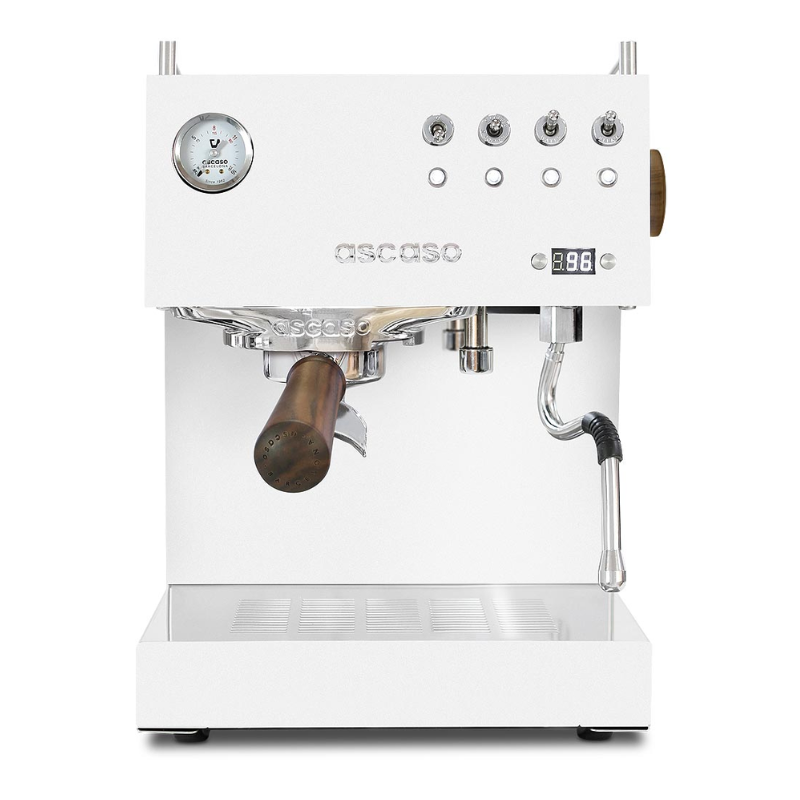

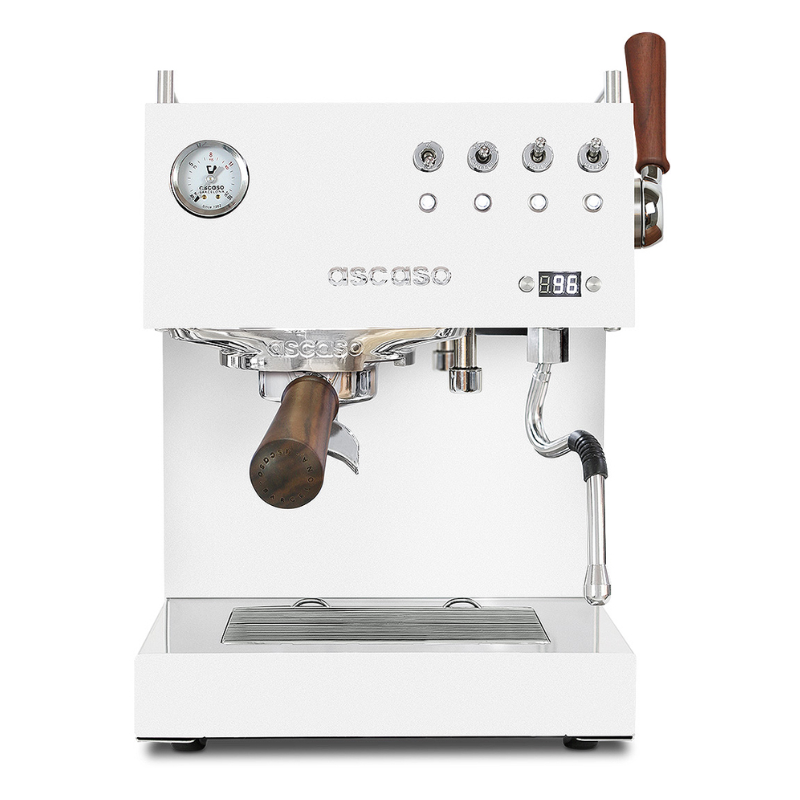

The STEEL range takes a step further and transcends the home. It’s a professional coffee machine, designed for use in homes, offices, and even small hospitality settings. Designed by the Ascaso Factory engineering team, the STEEL range, available in UNO and DUO versions, presents a robust, industrial-looking machine that meets the demands of expert users.
Built with high-quality materials (aluminum, stainless steel, brass) and minimal plastic use, it includes a 58mm portafilter and electronic temperature control as standard.
The PID version offers fully professional features: PID control, externally adjustable OPV, adjustable pre-infusion, cup warmer… and much more.
STEEL Range Specifications:
| Feature | Uno | Uno PID | Duo | Duo PID | Duo Plus |
|---|---|---|---|---|---|
| Dimensions (W/H/D) | 270 x 360 x 315 mm | 270 x 360 x 315 mm | 270 x 360 x 315 mm | 270 x 360 x 315 mm | 270 x 360 x 315 mm |
| Voltage / Power | 120V-220V / 1050W | 120V-220V / 1050W | 120V-220V / 2000W | 120V-220V / 2000W | 120V-220V / 2000W |
| Water Tank Capacity | 2 liters | 2 liters | 2 liters | 2 liters | 2 liters |
| Weight | 12 kg | 12 kg | 15 kg | 15 kg | 15 kg |
| Independent Steam/Water Groups | No | No | Yes | Yes | Yes |
| Steam Wand | Stainless steel, 360º anti-burn, ø10mm | Stainless steel, 360º anti-burn, ø10mm | Stainless steel, 360º anti-burn, ø10mm | Stainless steel, 360º anti-burn, ø10mm | Stainless steel, 360º anti-burn, ø10mm |
| Portafilter | Stainless steel ø58mm | Stainless steel ø58mm | Stainless steel ø58mm | Stainless steel ø58mm | Stainless steel ø58mm |
| Pump Pressure | 20 atm | Adjustable via OPV | 20 atm | Adjustable via OPV | Adjustable via PID |
| Coffee Thermostat | Electronic control | Adjustable via PID | Electronic control | Adjustable via PID | Adjustable via PID |
| Steam Thermostat | 165ºC with safety control | Controlled by PID | 165ºC with safety control | Controlled by PID | Controlled by PID |
| Pressure Gauge | No | No | Yes | Yes | Yes |
| OPV Pressure Control | No | Yes | No | Yes | Yes |
| Active Cup Warmer | No | Yes | Yes | Yes | Yes |
| PID Control | No | Yes | No | Yes | Yes |
| Dose Volume Control | No | Yes | Yes | Yes | Yes |
| Group Thermal Sleeve | No | Yes | Yes | Yes | Yes |
| Wood Handles | No | Yes | Yes | Yes | Yes |
| Steam Joystick | No | Yes | Yes | Yes | Yes |
| Food-grade Silicone Gasket | No | Yes | Yes | Yes | Yes |
| Competition Shower | No | Yes | Yes | Yes | Yes |
| Stainless Steel Steam Tap | No | Yes | Yes | Yes | Yes |
| Stainless Steel Tamper | No | Yes | Yes | Yes | Yes |
| Two Steam Tips (1 and 3 holes) | No | Yes | Yes | Yes | Yes |
| Two Complete Portafilters | No | Yes | Yes | Yes | Yes |
| Five Filters | No | Yes | Yes | Yes | Yes |
| Removable Wire Tray | No | Yes | Yes | Yes | Yes |
